Star Fortress Building Instructions Page 4
Chemical Plant |
Fuel Depot |
Small Offices |
Medium Offices |
Double Gun |
To build all of the items shown here, you will need 12 castings of each of the following molds:
#312 Star Fortress Mold A, #313 Star Fortress Mold B, #314 Star Fortress Mold C and #275 Techno Floor Mold.
You will need this parts list to build these items!
Click on the icon on the right to bring up a PDF file of the parts list. These are all of the parts from molds #312 (mold A), 313 (mold B) and 314 (mold C).
The reference numbers of these parts are referred to in the instructions and also the videos.

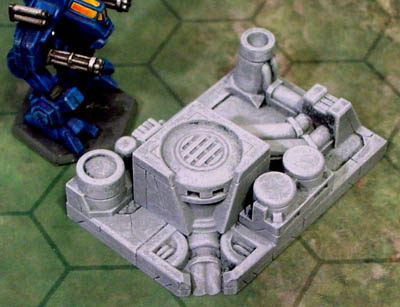

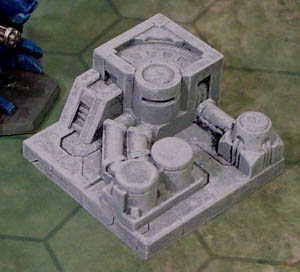

Chemical Plant
45. | Parts List Part# - Quantity
|
---|

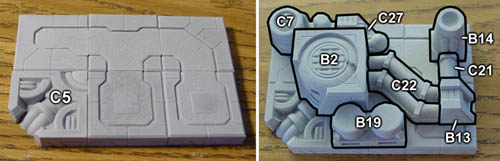

46. | In the first photo, C5 is used as one of the floor tiles. In the second photo, wait to glue the B2 block down until you have fit all of the surrounding pieces onto the tiles. |
---|
Fuel Depot
47. | Parts List Part# - Quantity
|
---|

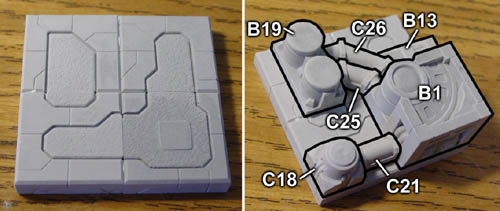

48. | In the second photo, the B1 block goes all the way into the corner. The B13 block is partially hidden but goes all the way to the side edge of the floor tile. |
---|

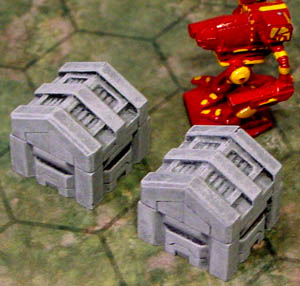

Small Office Blocks
49. | Parts List Part# - Quantity
|
---|

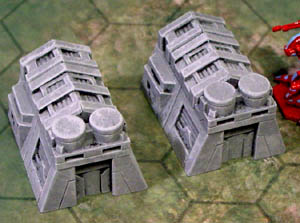

Medium Office Blocks
50. | Parts List Part# - Quantity
|
---|

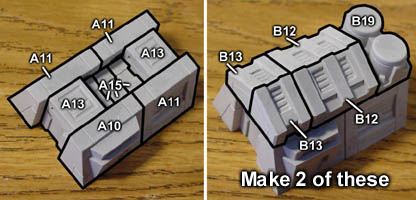

51. | The smaller A15 blocks in the center are placed on their edge. The whole center assembly of the A13's and the A15's are centered between the two ends so they will recess a little on each end. |
---|

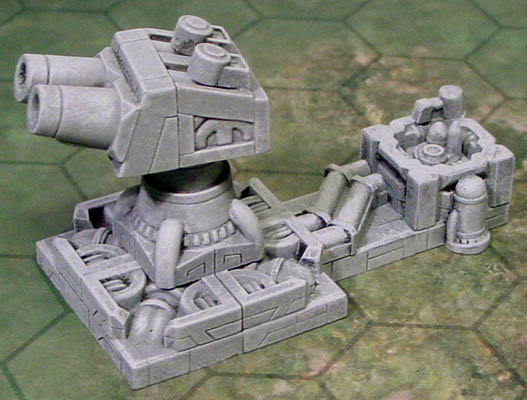

Double Gun with Box
52. | Parts List Part# - Quantity
|
---|

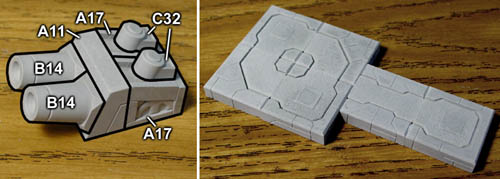

53. | You may need to lay the A11 piece on its back so you can glue the B14 guns on the front without them falling off. It really doesn't matter which floor tiles you use here because most of them will be covered up. |
---|
